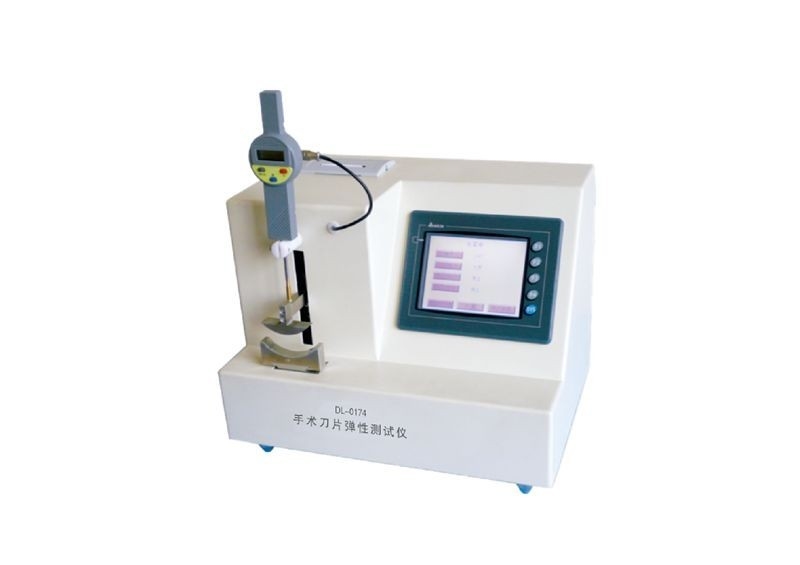

DL-0174 Surgical Blade Elasticity Tester
Safety Testing Medical Equipment and Technology for medical device manufacturers and governmental quality department
The tester is designed and manufactured according to YY0174-2005 " Scalpel Blade".Main principle is as follows: apply a certain force to the centre of the blade until a special column trusts the blade to a specified angle; maintian it in this postion for 10s, remove the applied force and measure the amount of deformation.
It consists of PLC,touch screen, step motor, transmission unit, centimeter dial gauge, printer ,etc. Both product specification and column travel are settable, column travel, time of tesing and the amount of deformation can be displayed on the touch screen, and all of them can be printed by the built-in printer.
Column travel: 0~50mm; resolution: 0.01mm
Error of deformation amount: within ±0.04mm
