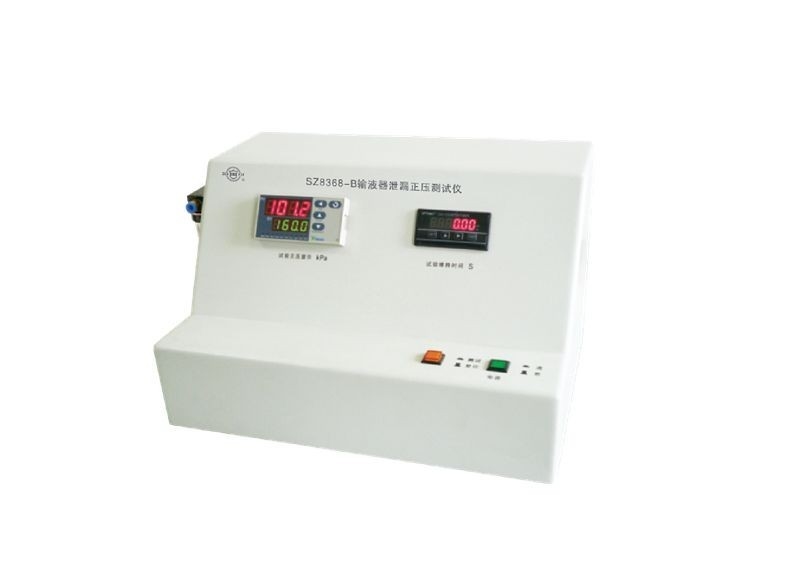

Medical Air Leakage Test Equipment

China Medical Air Leakage Test Equipment supplier
Medical Air Leakage Test Equipment supplier

Large Image :  Medical Air Leakage Test Equipment

Product Details:

Place of Origin: China
Brand Name: Wellmedlab
Certification: CE certificate or ISO certificate
Model Number: SZ8368-B
Product Name: Air Leakage Test Equipment Of Medical
Usage: Air Leakage
Power: Electronic
Duration: Adjustable from 1s to 60s
Range of positive pressure output: 120Kpa to 160kpa
Contact Now
Detailed Product Description
High Light:

air leakage tester

,

air leakage testing equipment

Custom Medical Air Leakage Test Equipment / Leakage Testing Machine SZ8368-B







Quick Detail:

1.Range of positive pressure output: adjustable from 120Kpa to 160kpa containing local atmospheric pressure; with LED digital display; error: within ±5%.

2.Positive pressure reading display on the manometer: shall not fall 1kpa for 1 minute

3.Duration: adjustable from 1s to 60s, with LED digital display'; error: within ±1s







Safety Testing Medical Equipment and Technology for medical device manufacturers and governmental quality department







Specification:

The tester is designed and manufacturer according to GB 8368-2005 (ISO8536-4:2004 " Infusion equipment for medical us -Part 4: Infusion sets for single use, gravity feed, MOD", It applies an internal air pressure of 50kpa above atmospheric pressure for 15s to examine the infusion set for air leakage.







Description:

Range of positive pressure output: adjustable from 120Kpa to 160kpa containing local atmospheric pressure; with LED digital display; error: within ±5%.

Positive pressure reading display on the manometer: shall not fall 1kpa for 1 minute

Duration: adjustable from 1s to 60s, with LED digital display'; error: within ±1s
