LD-1-YS Medical Leakage Current Tester for governmental quality department

I'm Online Chat Now

LD-1-YS Medical Leakage Current Tester for governmental quality department

China LD-1-YS Medical Leakage Current Tester for governmental quality department supplier
LD-1-YS Medical Leakage Current Tester for governmental quality department supplier

Large Image :  LD-1-YS Medical Leakage Current Tester for governmental quality department

Product Details:

Place of Origin: China
Brand Name: Wellmedlab
Certification: CE certificate or ISO certificate
Model Number: LD-1-YS
Contact Now
Detailed Product Description
High Light:

Medical product testing

,

safety test equipment

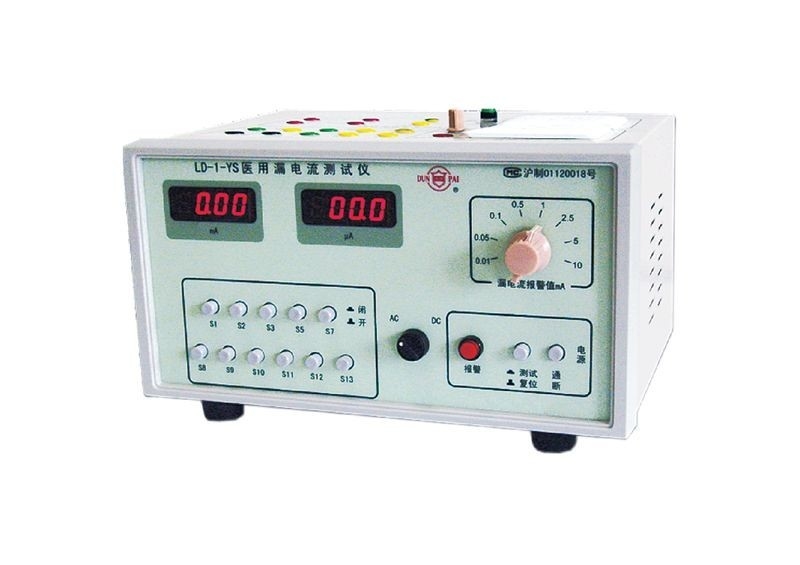

LD-1-YS Medical Leakage Current Tester

 Safety Testing Medical Equipment and Technology for medical device manufacturers and governmental quality department

Specification:


The tester is used for testing the content of Figure 16~27 in the lastest edition of GB 9706.1 ( idt IEC 60601-1) "Medical electrical equipment ---Part 1: General requirements for satety" , Operators can finish different combination of switches and select the test in normal condition or single fault condition. customized converter box is available for high-power or three-phase equipment.


Description:

Output Voltage: adjustable from 0V to 250V (AC); with LED digital display; error: within ±2% of reading
Output Power: 500W and 1KW
Input Impedance: compliant with the latest edition of GB9706.1
Measuring Range: 0.5uA~10mA; DC -1MHz True RMS; with LED digital display; error: within ±5% of reading
Leakage current alarm threshold: 0.01 / 0.05 / 0.1 / 0.5 / 1 / 2.5 / 5 / 10(mA) (8 options)
External Voltage: adjustable from 0V to 250V (AC); with LED digital display
Protective impedance: TYPE B: 10K; TYPE BF (120V); 22K; PE BF (240V); 47K; TYPE CF 100K
